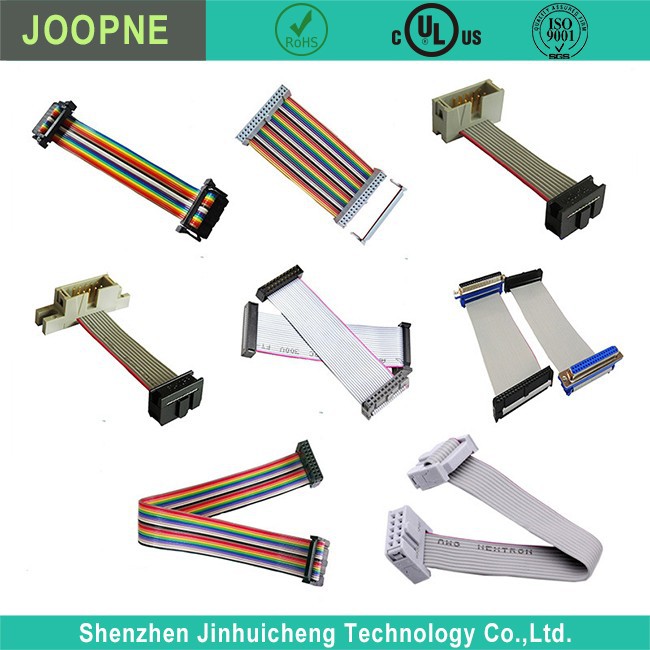

Ribbon Cable
A ribbon cable, also known as flat ribbon cable or flat cable, is a type of cable featuring multiple conducting wires running parallel to each other on a flat plane.
Product Introduction
A ribbon cable, also known as flat ribbon cable or flat cable, is a type of cable featuring multiple conducting wires running parallel to each other on a flat plane. These cables are typically organized side by side and held together by insulating material, forming a flexible, ribbon-like structure.
Key characteristics of ribbon cables include
Conductor Arrangement: Ribbon cables consist of multiple conductors arranged in a parallel configuration with equal spacing between them. The conductors are usually insulated from each other by thin layers of material.
Flat and Flexible Design: Unlike round cables, ribbon cables have a flat, wide structure, making them suitable for applications where space is limited or where a neat and organized wiring layout is required.
Ease of Identification: The conductors in a ribbon cable are often color-coded or numbered to facilitate easy identification and connection during installation.
Variety of Pin Counts and Sizes: Ribbon cables come in various pin counts (e.g., 10, 16, 20, 40, 50, etc.) and sizes to accommodate different connection requirements in electronic devices and systems.
Applications: Ribbon cables are commonly used for internal connections within electronic devices, computers, printers, data storage devices, industrial equipment, and more. They are often found in applications where multiple conductors need to be connected between components on a circuit board or within an enclosure.
Customization: Manufacturers can create ribbon cables with specific pin configurations, lengths, and terminations to suit the needs of different applications and devices.
Flexibility and Bending: Ribbon cables are relatively flexible, allowing them to be bent or folded without damaging the conductors. However, excessive bending or twisting may affect their performance.

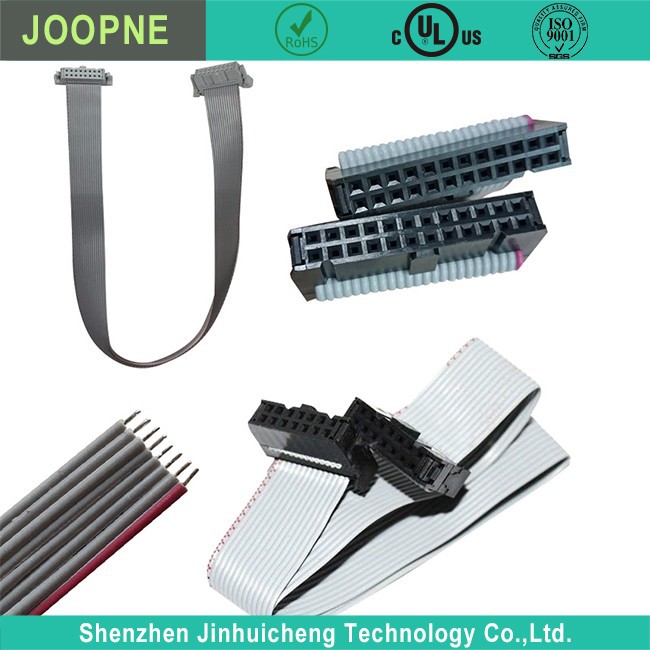

Usage with IDC Connectors: Ribbon cables are commonly used with Insulation Displacement Connectors (IDC) that securely clamp onto the conductors without the need for stripping the insulation.
Ribbon cables are widely used in the electronics industry due to their flat, space-saving design and ability to streamline internal wiring connections. They offer an efficient and organized solution for transmitting signals and power between components in various electronic devices and systems.
We do custom in various sizes,colors,lengths and harness connectors for Ribbon Cable.
Product Qualification
The cable comes in many different sizes to help you get the length you need. The cables are available in different lengths like 0.3m, 0.9m, 1.8m, 3m, 3.6m, 4.6m and 7.6m or others as your request.
