Your Professional Coaxial Cable Supplier
Established in Dec, 2006, with the market develop, we stably developped from a 2 person team to a middium size factory, and with over 20 staffs for research and engineering.Our Product: LCD LED panel connector wire, wire harness, power cord, coaxial cord, FFC, FPC, waterproof cable.Our Product: LCD LED panel connector wire, wire harness, power cord, coaxial cord, FFC, FPC, waterproof cable.
Variety of Products
We mainly research and produce customized cable assemblies, such as coaxial cables, control cables, connecting wires, XLPE cables, cables and other customized special cables. We can also provide LCD LED panel connection cables, wiring harnesses, power cables, coaxial cables, FFC FPC cables, and waterproof cables,There are lots china wiring harness custom manufacturers,but we are the most flexible one.
Advanced Production Equipment
We have 10 sets of domestic first-class plastic extrusion production lines and three-layer co-extrusion foaming machines. We are also equipped with an online detection system that can monitor and adjust the capacitance, outer diameter, and eccentricity of the cable to ensure the high quality of the cable.
Multiple Professional Certifications
We have a complete quality assurance system, and our products comply with CCC (China Compulsory Certification), US UL certification, ISO9001, and ETL certification. Our raw materials comply with RoHS, REACH and SGS standards.
OEM ODM Available
Our company has 18 years of manufacturing experience. At the same time, we are an OEM and ODM china custom wiring harness factory for many well-known brands around the world, such as ASUS, Sceptre, DELL, KONKA, LG, VIZIO, etc. We can also manufacture products according to your design.
| Item |
Specifications |
|

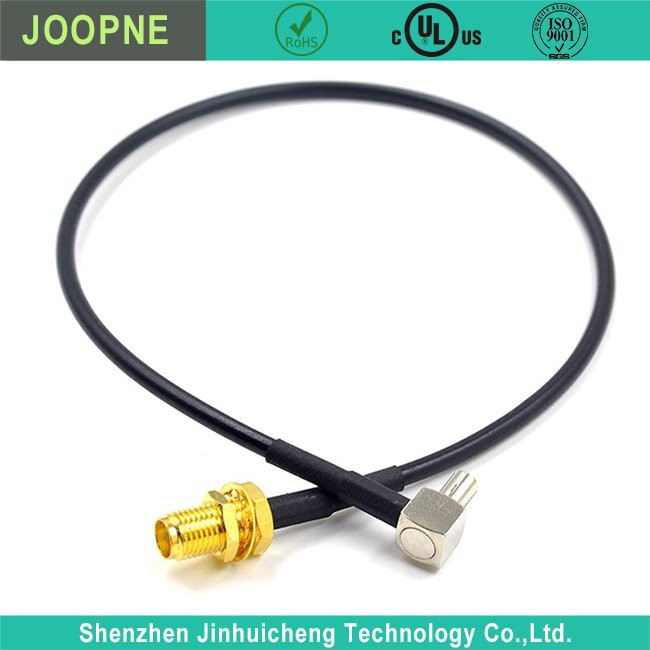

| Cable | Connector 1 | SMA/RP-SMA or customized |
| Connector 2 | N/BNC/IPEX/ or customized | |
| Cable type | RG174/RG58/LMR194 or customized | |
| Cable length | 10CM/20CM/1.0M/3.0M or customized | |
| Frequency Range | DC-3GHz/DC-6GHz | |
| Cable conductor | Pure copper | |
| Environmental | Operating Temperature | -40℃~+80℃ |
| Storage Temperature | -40℃~+85℃ | |
| Environmentally Friendly | ROHS Compliant | |
Types of Coaxial cables
Hardline coaxial cable
Hardline coaxial cable’s center conductor is made of copper, silver and has a larger diameter when compared to other coaxial cables.
Flexible coaxial cable
The flexible coaxial cables are very flexible and the inner conductor is surrounded by a flexible polymer.
Semi-rigid coaxial cable
Semi-rigid coaxial cable uses a solid copper outer sheath with a dielectric of Polytetrafluoroethylene.
Formable coaxial cable
It is an alternative to semi-rigid cable, instead of a rigid copper outer sheath a flexible metal sheath is utilized.
Twinaxial cable
It has two central conductors in the core and a single outer core and dielectric. these cables are best for low-frequency digital and video transmission.
Triaxial cable
It is also known as Triax. It is very much similar to a coaxial cable but with an additional copper braid added to it, the braid works as a shield and protects from noise.
Rigid coaxial cable
Rigid coaxial cable is made up of two copper tubes supported at cable ends and fixed intervals across the length of the cable using PTFE supports or disk insulators.
| Model No. | L9-C-JWFlex5 | |
| Interface | IEC 61169-13;CECC 22240;DIN47259 | |
| Electrical | ||
| Characteristic Impedance | 75ohm | |
| Frequency Range | DC-1GHz | |
| VSWR | ≤1.30@DC-1000MHz | |
| Dielectric Withstanding Voltage | ≥1000V RMS,50Hz,at sea levelWorking Voltage | |
| Working Vlotage | ≤330V RMS,50Hz,at sea level | |
| Dielectric Resistance | ≥10000MΩ | |
| Contact Resistance | Center Contact ≤4mΩ | Outer Contact ≤2mΩ |
| Mechanical | ||
| Durability | Mating cycles ≥500 | |
| Center Conductor Retention Force | ≥0.5N | |
| Coupling Nut Retention Force | ≥300N | |
| Material and Plating | ||
| Parts Name | Material | Plating |
| Body | Brass | Ni |
| Insulator | PTFE | — |
| Center conductor | Phosphor bronze | Au |
| Outer contact | Phosphor bronze | Au |
| Coupling nut | Zinc alloy | Ni |
| Washer | Zinc alloy | Ni |
| Environmental | ||
| Temperature Range | -40℃~+85℃ | |
| RoHS | Compliant | |
Uses of Coaxial Cable
Television
Coaxial cable used for television would be 75 Ohm and RG-6 coaxial cable.
Internet
Coaxial cables are also used for carrying internet signals, RG-6 cables are used for this.
CCTV
The coaxial cables are also used in CCTV systems and both RG-59 AND RG-6 cables can be used.
Video
The coaxial cables are also used in video Transmission the RG-6 is used for better digital signals and RG-59 for lossless transmission of video signals.
HDTV
The HDTV uses RG-11 as it provides more space for signals to transfer.
We’re professional coaxial cable manufacturers and suppliers in China, specialized in providing high quality products and service. We warmly welcome you to wholesale customized coaxial cable from our factory. Contact us for pricelist and quotation.
