ring socket cable
ring socket cable Description ring socket cable Parameter Plum Blossom ring socket cable Introduction ring socket cable are used to provide power to devices in…
Product Introduction
ring socket cable Description
|
· Molded |
|
· Different Fuction cable as Requirement |
|
· Suitable for Applicance use |
|
· UL listed for safety; IEC standard; TUV |
ring socket cable Parameter
|
Rated Voltage: |
100V-240V |
|
Rated Current: |
10A-16A |
|
Connector: |
Molded |
|
Power Supply: |
Electric |
ring socket cable Introduction
Material and Construction
These cables are constructed using high-quality materials to ensure durability, safety, and optimal performance. The core conductors are typically made of pure copper or tinned copper, known for their excellent electrical conductivity and corrosion resistance. The wire insulation is usually composed of PVC (Polyvinyl Chloride) or XLPE (Cross-Linked Polyethylene), offering superior flexibility and protection against environmental factors.
The ring socket cable is made of durable thermoplastic material, ensuring a secure and reliable connection. The ring terminals are typically made of tinned copper or brass, providing excellent conductivity and corrosion resistance.
Applications
These cables find use in a wide range of applications across various industries in China:
Consumer Electronics: Power supplies for TVs, monitors, and audio equipment
Home Appliances: Connecting washing machines, air conditioners, and refrigerators
Industrial Equipment: Powering control panels and machinery
Medical Devices: Supplying power to diagnostic and treatment equipment
Office Equipment: Connecting printers, copiers, and other office machines
Function and Performance
The primary function of these cables is to provide a reliable and efficient power connection between a VH3.96-3P power source and devices equipped with plum blossom sockets. The higher current capacity (10A to 16A) and thicker wire gauge (18 to 20 AWG) allow these cables to safely power devices with higher power requirements, which are common in the Chinese market.
The 3.2mm ring terminals ensure a secure connection to the plum blossom socket, while the VH3.96-3P connector provides a standardized interface for power sources. This combination allows for easy integration of Chinese-specific devices into various power systems.
Manufacturing Expertise
Our advanced manufacturing process ensures the highest quality and consistency in every Plum Blossom Socket VH3.96-3P to 3.2 Ring Terminal Cable we produce. Key aspects of our manufacturing expertise include:
Precision wire cutting and stripping for accurate dimensions
Automated crimping process for consistent and reliable terminations
Custom tooling for ring socket cable connector assembly
Advanced insulation and jacketing processes for optimal protection
Rigorous quality control measures, including pull-force testing and electrical performance verification
Competitive Advantages
These specialized cables offer several advantages over generic power cables:
Market-Specific Design: Tailored for the unique requirements of the Chinese market
Higher Current Capacity: Suitable for powering a wide range of high-power devices
Versatility: Compatible with both 100-120V and 220-240V systems
Reliability: Secure connections on both ends prevent accidental disconnections
Customization: Available in various lengths and configurations to meet specific needs
Benefits for Buyers
Choosing our Plum Blossom Socket ring socket cable provides numerous benefits for buyers:
Simplified Integration: Easy connection of Chinese-specific devices to standard power sources
Cost Savings: Eliminates the need for additional adapters or converters
Improved Safety: Higher current capacity and thicker wire gauge reduce the risk of overheating
Flexibility: Compatible with a wide range of devices and power systems
Reliability: High-quality materials and construction ensure consistent performance
Frequently Asked Questions
Plum Blossom Socket VH3.96-3P/3.2 Ring Terminal Cable

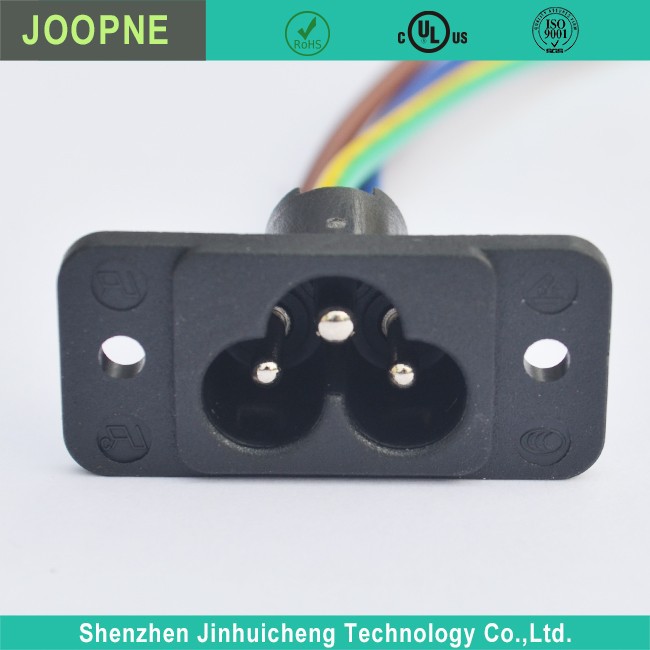

What is a plum blossom socket?
+
–
Also called a flower socket, it is an alternative power input used on some devices in China instead of a standard power jack. It has multiple holes arranged like a plum blossom shape.
What do the VH3.96-3P pins do?
+
–
Pin 1 is live, Pin 2 is neutral, and Pin 3 is ground. This provides the standard AC power connection.
How much current can they carry?
+
–
Typically 10-16A, due to using thicker 18-20 AWG wire. This allows powering higher power devices commonly.
What devices do they connect to??
+
–
Any device with a 3-hole plum blossom socket, like some appliances, industrial equipment, and older electronics made for the Chinese market.
What plug do they have?
+
–
They have a VH3.96-3P plug on one end. This is a common power plug type used in China that supports currents over 10A.
