Product Introduction

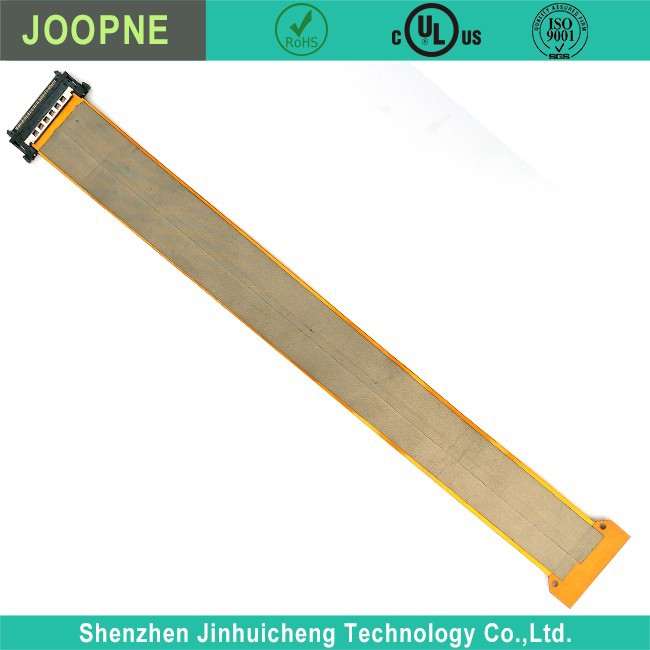

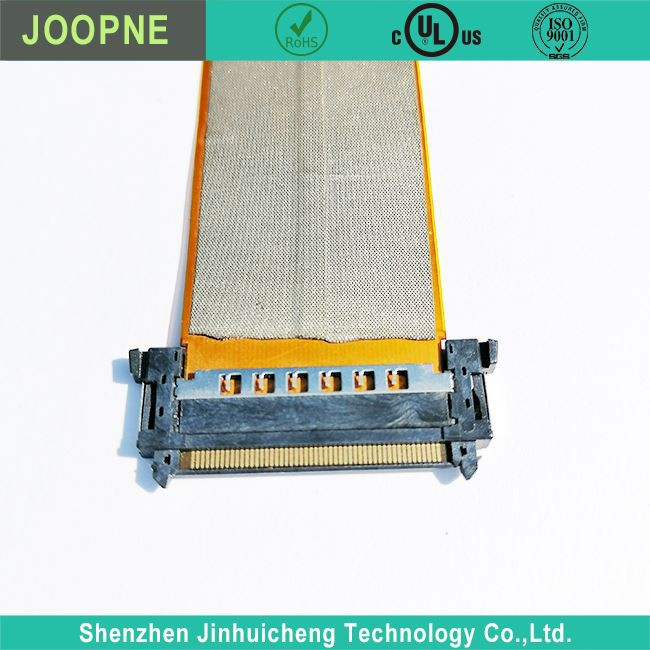

FPC Panel Cable Description
|
· Shielded |
|
· Different OD harnessed cable |
|
· Suitable for Monitor Screen use |
|
· UL listed for safety; IEC standard; TUV |
Parameter
|
Rated Voltage: |
100V-600V |
|
Rated Current: |
2A- 5A |
|
Connector: |
Shielded |
|
Power Supply: |
Electric |
Ffc Fpc Panel Cable Introduction
FPC panel cables refer to flat panel cables used for internal wiring inside electrical panels and enclosures. They have several key features:
• Flat ribbon-like structure: FPC panel cables have a flat ribbon structure with multiple thin conductors sandwiched between two insulating layers. This makes them very thin, flexible, and easy to install in tight spaces.
• Low voltage ratings: Since FPC cables are mainly used for signal and data transmission within panels, they typically have lower voltage ratings, up to 100V or 600V.
• Low current ratings: The current-carrying capacity of FPC cables is also relatively low, usually up to a few amps. This is sufficient for connecting low-current loads like sensors and indicators.
• High flexibility: FPC cables have high flexibility, which makes them easy to route and install within tight spaces in electrical panels. They can withstand repeated bending.
• Lightweight: FPC cables are typically lighter in weight compared to standard round cables due to their thin structure, saving space within crowded panels.
• Flame-retardant insulation: FPC panel cables have insulation materials that are flame-retardant and produce low smoke in case of fire, improving safety inside electrical panels.
• Easy termination: The thin conductors of FPC cables make them easy to terminate on connectors and terminals within the panel.
In summary, FPC panel cables are flat ribbon cables well-suited for internal wiring and signal transmission applications inside electrical panels and enclosures. Their thin, flexible, and lightweight structure, combined with low voltage and current ratings, makes them an ideal choice for routing wires within tight spaces in electrical panels.
Frequently Asked Questions
What does FPC stand for?
+
–
FPC stands for Flat Panel Cable. These are flat ribbon cables used for internal wiring inside electrical panels.
What are the advantages of FPC cables over round cables?
+
–
The main advantages of FPC cables over round cables for panel wiring are:
• They are thinner and more flexible which makes them easier to install in tight spaces within panels.
• They save more space within crowded panels due to their flat structure and higher conductor density.
• They are lighter in weight.
• They have lower bending radii which means they can withstand repeated bending cycles better.
What are FPC cables made of?
+
–
FPC panel cables are typically made of:
• Copper or aluminum conductors
• PVC, PE or FEP insulation materials to insulate the individual conductors
• Flame retardant and low smoke zero halogen insulation for safety inside panels.
What are the voltage and current ratings of FPC cables?
+
–
FPC cables typically have:
• Lower voltage ratings from 30V up to 100V or 600V, since they are used for low voltage applications.
• Lower current ratings, usually up to a few amps. This is sufficient for connecting low current loads like sensors and indicators.
