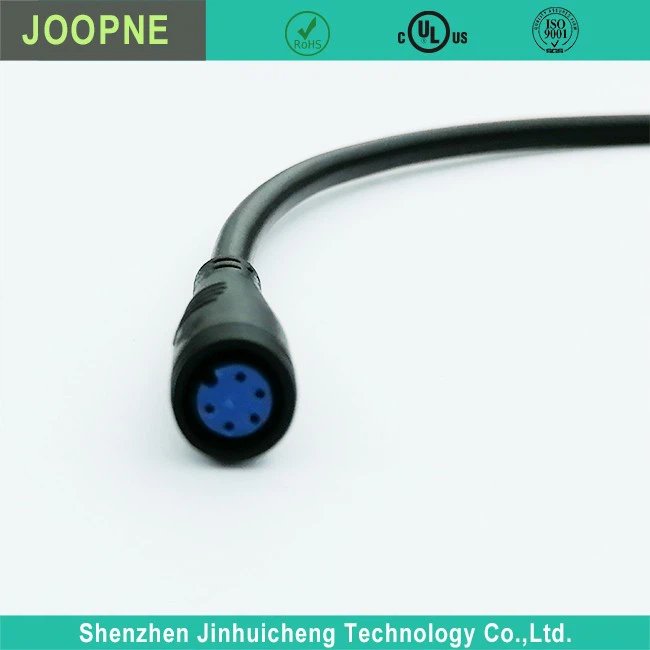

M8 Waterproof Control Cable
M8 Waterproof Ebike Control Cable Description M8 Waterproof Ebike Control Cable Parameter M8 Waterproof Ebike Control Cable Introduction Here is an introduction to M8 waterproof ebike control cables: M8 ebike control cables are specially designed cables used to connect the controls and…
Product Introduction
M8 Waterproof Ebike Control Cable Description
|
· Molded |
|
· Different Fuction cable as Requirement |
|
· Suitable for Ebike use |
|
· UL listed for safety; IEC standard; TUV |
M8 Waterproof Ebike Control Cable Parameter
|
Rated Voltage: |
36V-72V |
|
Rated Current: |
20A-30A |
|
Connector: |
Molded |
|
Power Supply: |
Electri |
M8 Waterproof Ebike Control Cable Introduction
Here is an introduction to M8 waterproof ebike control cables:
M8 ebike control cables are specially designed cables used to connect the controls and electronics on electric bikes. They feature M8 connectors, waterproofing, high temperature resistance and thick wires to carry the higher currents needed for electric bike systems.
Electric bikes use high voltage batteries and electric motors that generate significant heat and current. This requires specialized cables to reliably connect the controls and electronics. Standard automotive or low voltage cables are not suitable.
M8 connectors are commonly used on electric bikes because they are:
• Rugged – They can withstand the vibrations and impacts experienced on ebike use.
• Waterproof – They provide an IP rating of at least IP67, protecting against dust and water ingress. This is important for outdoor ebike use.
• Easy to connect – The circular connector design makes it simple to plug and unplug.
• Available with multiple pins – They come in variants with 4, 5, 6, 7 and 8 pins to accommodate all the necessary signals for an ebike system.
The cables themselves feature:
• Waterproof and heat resistant jackets – To protect the wires from moisture, corrosion and high temperatures.
• Thick power wires – To carry the higher currents needed for the ebike’s electric motor and other loads.
• Thinner control wires – For signals like throttle, brake, turn signals, etc.
• Flexibility – The cable can bend as the handlebars are turned.
So in summary, M8 waterproof ebike control cables provide a reliable connection between the controls and electronics of an electric bike. Their specialized features make them suitable for the unique requirements of ebikes.
Frequently Asked Questions
M8 Waterproof Ebike Control Cable
What gauge wire is recommended for ebike cables?
+
–
For power cables carrying current to the electric motor, 0.75mm2 to 1.5mm2 wire gauges are typically recommended. This is able to carry around 20-30 amps of current continuously, which is sufficient for most mid-drive ebike motors. Higher gauge wires may be needed for higher power motors.
What is the maximum voltage for ebike cables?
+
–
Most ebike cables are rated for at least 60V DC, as this covers the majority of ebike battery voltages ranging from 36V to 48V. Some higher end ebikes with 72V batteries may require cables rated for at least 75V DC.
How many pins do ebike M8 connectors have?
+
–
The most common M8 connectors for ebikes have either 5 pins or 8 pins. 5 pin connectors are used for simpler throttle and brake control, while 8 pin connectors can also accommodate turn signals, lighting and other functions.
Are ebike cables shielded?
+
–
For best performance, ebike cables should be shielded to prevent electromagnetic interference (EMI) from the high voltages and currents. This helps ensure reliable operation of the controls and electronics.
What material is used for the cable jacket?
+
–
The most common materials for ebike cable jackets are rubber and plastic. These provide insulation, flexibility and resistance to water, UV light, abrasion and high temperatures. PVC and TPE are some of the specific plastics commonly used.
