Dryer Power Cord

4 Prong Dryer Cord, 30 AMP Appliance Power Cord 10 Feet, Wires in 4 Colors with O Ring Terminal Connectors, Pure Copper Wire

• DURABLE & POWERFUL: Heavy-duty dryer power cord suitable for a 30A 4-wire dryer outlet. The 4-prong 30A NEMA 14-30P plug fits older and most newer dryer models.
• EASY TO INSTALL: Ring terminals provide a quick and secure connection. Reinforced blades enhance durability and prevent prongs from bending or breaking accidentally.
• SAFETY: UL listed or IEC standard, 125/250 Volts. Compatible with most electric clothes dryers that use a 4-prong dryer cord with 10 AWG wires. The SDRT cable can withstand high temperatures up to 140℉.

Dryer Power Cord Specifications

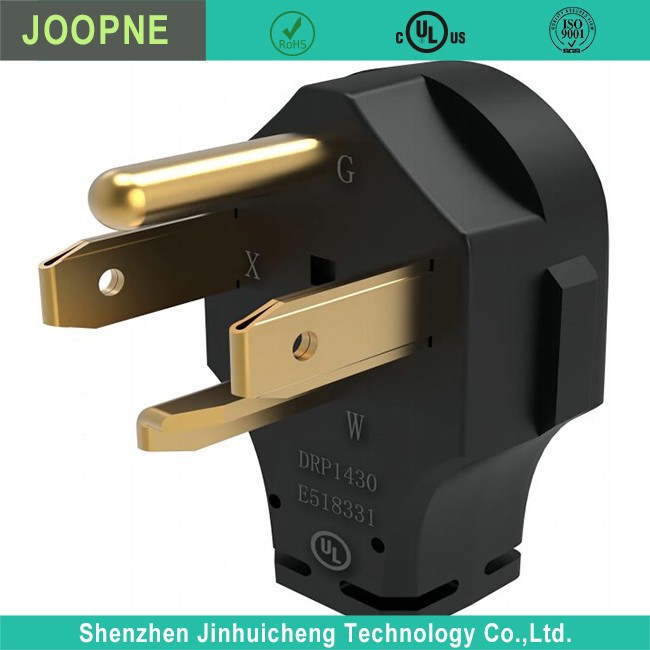

• NEMA 14-30P Plug
• SRDT 10AWG/3C or custom options available
• UL Listed and IEC Standard

4-Wire Connection

• Mounting kit included
• Wires in 4 colors with O-ring terminal connectors
• 30A 125/250V, 7500W Max

Precautions for Use

• Do not exceed the specified wattage limit for this cord.
• Do not connect a four-prong plug to a three-slot outlet.

A dryer power cord is an electrical cable specifically designed to power an electric clothes dryer. It generally consists of the following components:

• Plug: The end of the cord that connects to the electrical outlet. Dryer power cords often feature a three-prong or four-prong plug, depending on the dryer’s outlet requirements.
• Cord Body: The insulated wire connecting the plug to the dryer, typically coated in rubber or plastic for safety and protection.
• Wires: Inside, there are usually three or four wires. A three-wire cord includes two hot wires (black and red), one neutral wire (white), and a ground wire (green or bare copper). A four-wire cord includes two hot wires, a neutral wire, and a separate ground wire.
• Strain Relief: Found where the cord meets the dryer, this component prevents the cord from being pulled out or damaged.

Using the correct power cord and ensuring proper installation are essential to prevent electrical hazards. If you are not experienced with electrical work, consult a qualified electrician to install or replace a dryer power cord.

The 4-prong dryer cord includes two hot wires, a neutral wire, and a ground wire, creating a separate return path for unused current. Dryer cords are typically a maximum of six feet long, as code requires the outlet to be close to the appliance.

Heavy-Duty Design

This heavy-duty dryer power cord features a 4-wire connection on one end and a male NEMA 10-30P plug on the other.

The dryer power cable is available in different lengths, including 0.3m, 0.9m, 1.8m, 3m, 3.6m, 4.6m, and 7.6m, with other lengths available upon request.

Customization options are available in various sizes, colors, and lengths.

The cable comes in different sizes to suit your length requirements, including options such as 0.3m, 0.9m, 1.8m, 3m, 3.6m, 4.6m, and 7.6m, with other lengths available upon request.

Q: How do I change a dryer power cord?

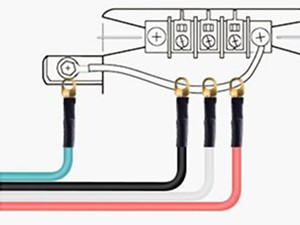

A: To change a dryer power cord, start by unplugging the dryer from the outlet and, if possible, turn off the circuit breaker for added safety. Remove the access panel on the back of the dryer to expose the terminal block. Note how the old cord is connected (either 3-prong or 4-prong) and disconnect each wire carefully. Attach the wires of the new cord to the corresponding terminals: for a 3-prong, connect two outer hot wires to the outer terminals and the neutral to the center; for a 4-prong, connect two outer hot wires to the outer terminals, the neutral to the center, and the ground wire to the ground terminal. Secure each terminal connection and attach the strain relief clamp to prevent tension on the cord. Replace the access panel, plug in the dryer, and test it by running a short cycle to ensure proper function.
