What is the insulation resistance of 24 Pin FPC?

As a supplier of 24 Pin FPC, one question I often get asked is: "What is the insulation resistance of 24 Pin FPC?" Well, let’s dive right into it.

First off, insulation resistance is a crucial parameter when it comes to FPCs. It measures the ability of the insulating material in the FPC to resist the flow of electric current. In simple terms, it tells you how well the insulation between the conductors in the 24 Pin FPC is working. Good insulation resistance ensures that there’s minimal leakage current between the different pins, which is super important for the proper functioning of any device the FPC is used in.

The insulation resistance of a 24 Pin FPC can vary depending on a few factors. One of the main factors is the type of insulating material used. Different materials have different inherent insulation properties. For example, some high – quality polyimide films are often used in FPCs because they offer excellent insulation resistance. They can withstand a certain amount of voltage without allowing significant current leakage.

Another factor is the manufacturing process. If the FPC is not manufactured properly, there could be defects in the insulation layer. These defects, like tiny holes or cracks, can reduce the insulation resistance. During the production of our 24 Pin FPCs, we pay close attention to every step of the manufacturing process. We use advanced techniques to ensure that the insulation layer is uniform and free of any flaws.

The environment in which the FPC operates also has a huge impact on its insulation resistance. High humidity can be a real problem. When the air is humid, moisture can seep into the insulation material, which can lower the insulation resistance. Temperature is another factor. Extreme temperatures, either very hot or very cold, can cause the insulation material to expand or contract, potentially leading to damage and a decrease in insulation resistance.

Typically, for a well – made 24 Pin FPC, the insulation resistance should be in the range of several hundred mega – ohms to giga – ohms. This high value indicates that the insulation is doing its job well and that there’s very little current leakage between the pins. But keep in mind, these values are just general estimates, and the actual insulation resistance can vary based on the specific design and application of the FPC.

Now, let me tell you about our 24 Pin FPCs. We’ve been in the business for a while, and we’ve built a reputation for producing high – quality FPCs. Our 24 Pin FPCs are designed to meet a wide range of requirements. Whether you need them for consumer electronics, automotive applications, or industrial equipment, we’ve got you covered.

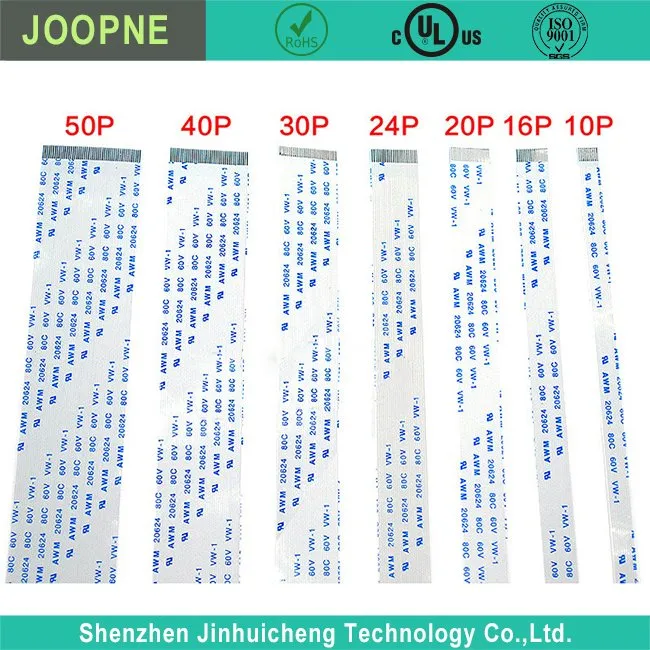

We also offer a variety of related products. For instance, if you’re looking for something with a different pin count, we have the 30 Pin FPC Cable. This cable is suitable for applications that require more connections. And if you need extra protection against electromagnetic interference, our Shielded FPC Cable is a great option. It has a shielding layer that helps reduce interference and ensures reliable signal transmission.

If you’re in the market for a display connection solution, our FPC Panel Cable is worth checking out. It’s designed to provide a stable and high – performance connection between the display panel and other components.

When it comes to the insulation resistance of our 24 Pin FPCs, we conduct rigorous testing. We use state – of – the – art equipment to measure the insulation resistance at different stages of production. This way, we can ensure that every FPC that leaves our factory meets the highest quality standards.

In practical applications, a high insulation resistance is essential for maintaining the reliability and performance of the device. For example, in a smartphone, the 24 Pin FPC might be used to connect different components like the display, touch sensor, and camera. If the insulation resistance is low, it can cause signal interference, which can lead to issues like flickering screens or malfunctions in the camera.

In industrial applications, low insulation resistance in a 24 Pin FPC can be even more problematic. It can lead to electrical failures, which can disrupt production processes and cause significant losses. That’s why choosing an FPC with good insulation resistance is so important.

If you’re interested in learning more about the insulation resistance of our 24 Pin FPCs or other FPC products, feel free to get in touch with us. We’re always happy to answer your questions and discuss your specific needs. Whether you’re a small – scale manufacturer or a large corporation, we can work with you to find the right FPC solution for your project.

To sum it up, the insulation resistance of 24 Pin FPC is a critical factor that affects its performance and reliability. By understanding the factors that influence it and choosing a high – quality FPC like ours, you can ensure the smooth operation of your devices.

If you’re thinking about making a purchase, don’t hesitate to reach out. We’re here to provide you with the best products and the most professional service. Let’s start a conversation and see how we can work together to meet your FPC requirements.
