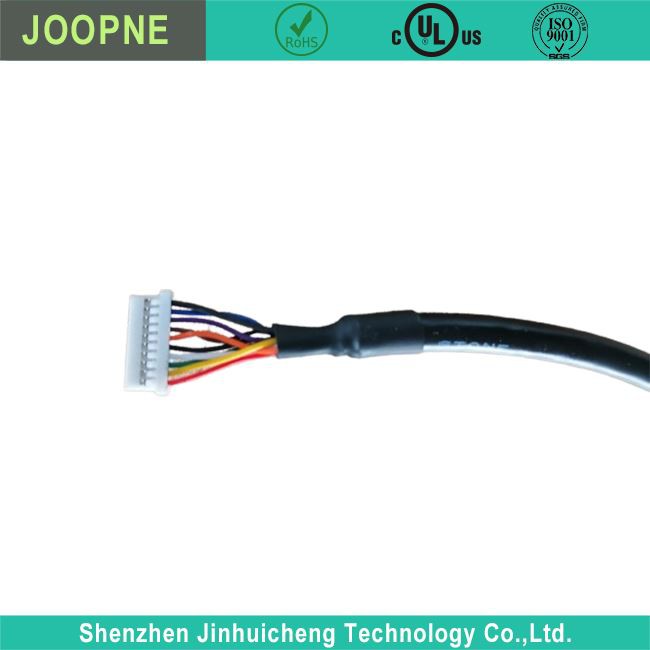

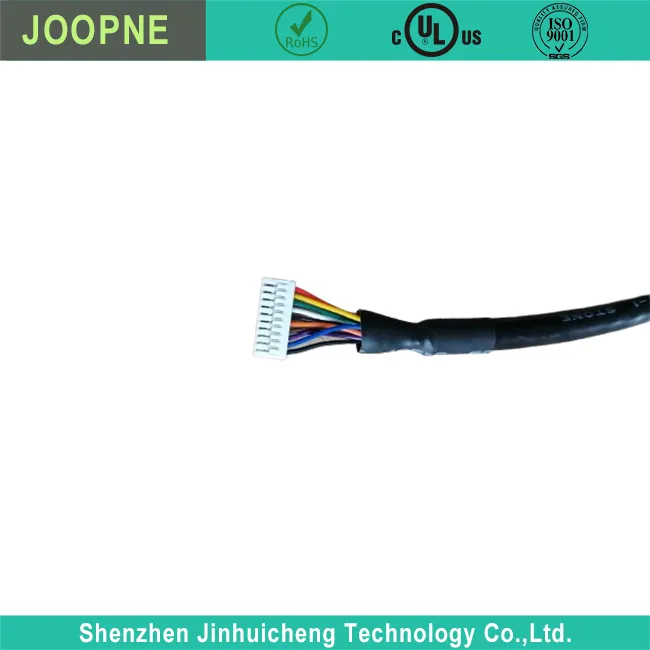

WiFi module cable is an essential component in connecting a WiFi module to a host system, such as a microcontroller or computer motherboard. The WiFi module itself is a device that allows other electronics to connect to wireless networks.

These modules operate on standard WiFi protocols like 802.11b/g/n and newer standards like 802.11ac and 802.11ax (WiFi 6), enabling devices to communicate wirelessly.

WiFi Module Cable Overview

Purpose: The cable facilitates the connection and communication between the WiFi module and the main device’s circuitry, providing both power and data transmission pathways.

Types of Connections:

Data Lines: These are used for transmitting and receiving data signals.
Power Lines: They supply the necessary voltage and current to the WiFi module.
Ground Lines: Essential for completing the electrical circuit and for safety.

Common Connectors:

Header Pins: Often used for breadboards or development kits.
USB Connectors: Some WiFi modules come with a USB interface for easy connection to computers.
U.FL/IPX Connectors: For antennas that extend the WiFi range.

Installation:

Ensure the power is off before installation.
Connect the cable to the appropriate header or port on the WiFi module.
Secure the other end of the cable to the host system’s corresponding interface.
Attach any external antennas if required.

Safety Notes:

Always handle electronic components with care to prevent static damage.
Make sure to use cables that are rated for the voltage and current specified by the WiFi module’s manufacturer.
WiFi module cables are usually tailored for specific modules and systems, so it’s crucial to use the cable that matches your module’s specifications. If you’re setting up a WiFi connection for a project, always refer to the module’s datasheet and the user manual for proper cable connections and configurations.

WiFi module cables typically carry a voltage of 3.3V, as most WiFi modules, like the ESP8266, operate within a range of 1.7V to 3.6V. The average current draw is around 80mA, but transmitting and receiving data can momentarily increase this draw.
