Sata Power Cable For Hdd

Female sata power cable for hdd to Female SATA Data Cable, 460mm

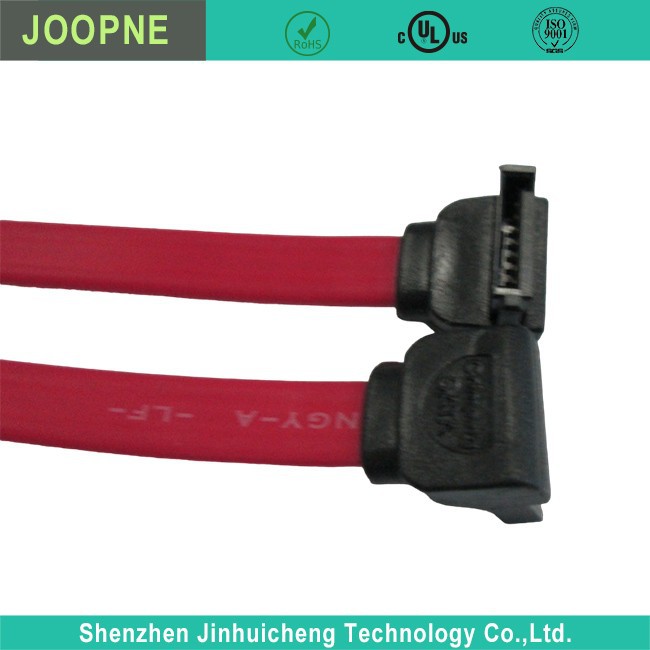

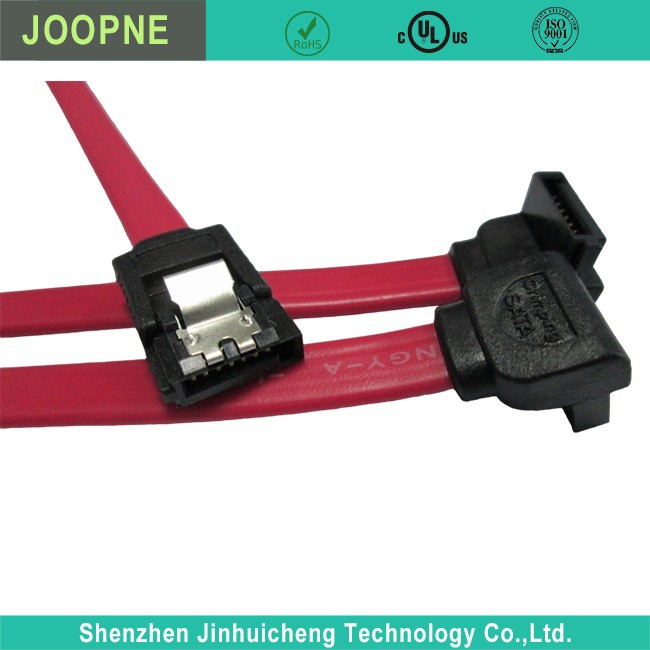

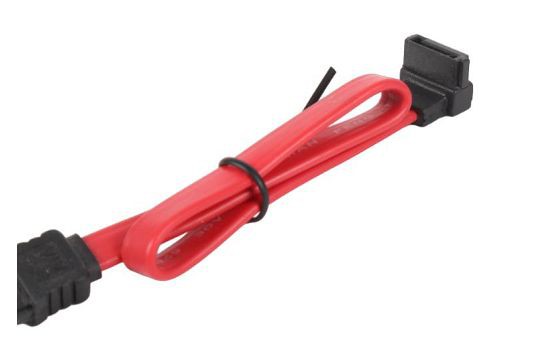

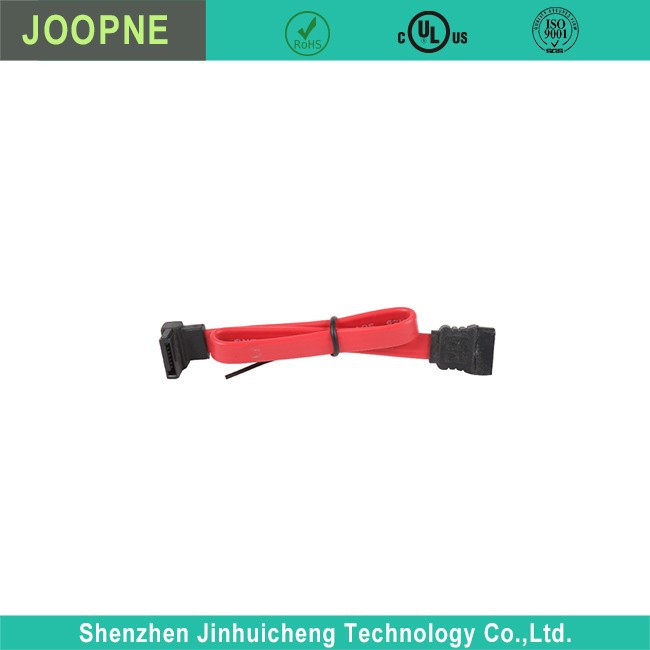

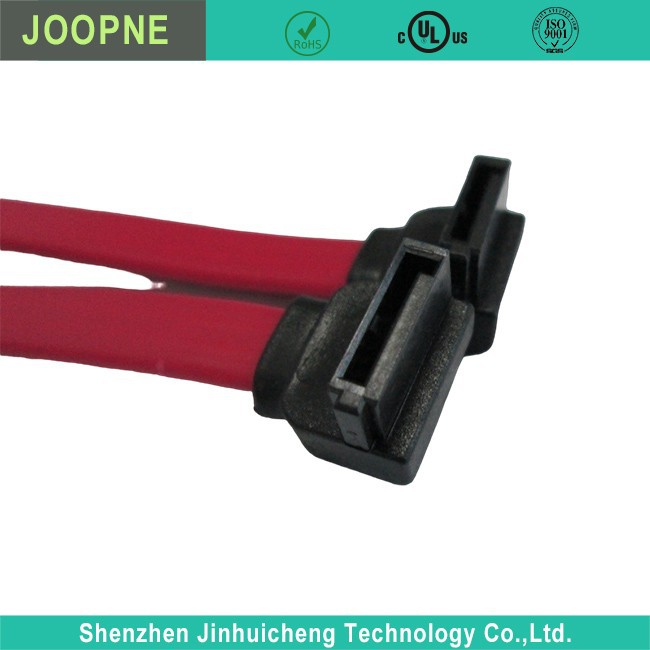

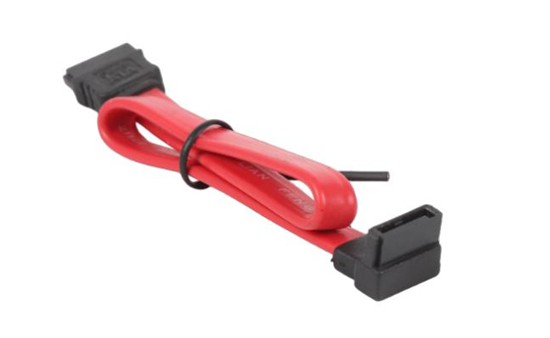

Left Angle SATA Cable

Left Angle (90-degree) SATA Cable features a standard (straight) SATA receptacle as well as a sata power cable for hdd receptacle, providing a simple 18-inch connection to a Serial ATA drive, with full SATA 3.0 bandwidth support of up to 6Gbps when used with SATA 3.0 compliant drives.

The sata power cable for hdd connection enables you to plug in your Serial ATA hard drive in hard to reach areas or tight spaces, while the low profile and flexible design of the cable improves airflow and reduces clutter in your computer case, helping to keep the case clean and cool.

Constructed of only top quality materials and designed for optimum performance and reliability this 18″ sata power cable for hdd is backed by our lifetime warranty.

As an alternative, also offers a 18in Right Angle sata flex cable (SATA18RA1), which provides the same simple installation as this left angled SATA cable, but allows modular sata power cable to connect to the SATA drive from the opposite direction.

• 1x SATA connector

• 1x Left-angled/90-degree SATA connector

• Supports full SATA 3.0 6Gbps bandwidth

• Compatible with both 3.5″ and 2.5″ SATA hard drives

• Provides 18″ in cable length

• Left-angled SATA connector easily fits into hard to reach areas and tight spaces, providing flexibility to position your SATA drive as needed within your system case

• Features a thin cable design, which helps reduce clutter and increase airflow within the computer/server case, for optimum system performance

• Installing Serial ATA hard drives, and DVD drives in Small Form Factor computer cases

• Server and storage subsystem applications

• High-end workstation drive installations

• Connections to SATA Drive Arrays

What’s in the package?

• 18in SATA to Left Angle SATA Serial ATA Cable – F/F

What is the difference between SATA & PATA?
SATA (Serial ATA) and PATA (Parallel ATA) are interfaces primarily used to link to mass storage components e.g. hard drives and optical drives. SATA is the more recent interface and the successor of PATA and commonly used in all computers. The key advantages of the SATA interface include; increased data transfer rate, easy cable management and better cable length, increased airflow due to its smaller size and lastly, support more drives.

Supporting hot-swapping, fast data transfer, and high operational efficiency, hard drives using the SATA (Serial ATA) interface are referred to as serial interface hard drives, representing the trend of future PC storage. Serial ATA utilizes a serial connection method and incorporates embedded clock signals in its serial ATA bus, which enhances error correction capabilities significantly. One of its major differences compared to the past lies in its ability to verify transmission commands (not just data); if errors are detected, automatic correction occurs, greatly enhancing data transmission reliability. The serial interface also boasts simple structure and supports hot-swapping.

Serial interface hard drives, known for their serial data transmission, represent a completely different hard drive interface type from parallel ATA. In comparison to parallel ATA, they offer numerous advantages. Firstly, Serial ATA transmits data in a continuous serial manner, sending only 1 bit of data at a time. This reduces the number of pins on the SATA interface, resulting in fewer connecting cables and increased efficiency. In practice, Serial ATA accomplishes all tasks using just four pins: for cable connection, ground connection, data transmission, and data reception. Additionally, this architecture reduces system power consumption and complexity. Secondly, Serial ATA has a higher starting point and greater development potential. Serial ATA 1.0 defines a data transfer rate of up to 150MB/s, surpassing the highest data transfer rate of the fastest parallel ATA (ATA/133) at 133MB/s. With Serial ATA 2.0, the data transfer rate reaches 300MB/s, ultimately aiming for a maximum data transfer rate of 600MB/s.

The physical design of SATA is derived from Fibre Channel, utilizing a four-core wiring system. The required voltage is significantly reduced to 250mV (maximum 500mV), which is 20 times less than the traditional parallel ATA interface’s 5V! Hence, manufacturers can integrate advanced features into Serial ATA hard drives, such as Hot Swapping. More importantly, in terms of connection, besides the traditional Point-to-Point connection, SATA also supports a “star” connection, providing convenience for advanced applications like RAID. In practical use, SATA’s Host Bus Adapter (HBA) functions akin to a switch on a network, allowing individual communication with each hard drive via a dedicated channel. Therefore, it eliminates the master/slave control issue present in parallel ATA.

We can custom in various sizes, colors, lengths.

The cable comes in many different sizes to help you get the length you need. The cables are available in different lengths like 0.3m, 0.9m, 1.8m, 3m, 3.6m, 4.6m and 7.6m or others as your request.
