M13 Cable
M13 Cable Description M13 Cable Parameter M13 Cable are designed to withstand moisture and harsh environments. Some key points: They have the same connectors and…
Product Introduction
Description
|
· M13 Connector |
|
· Different Fuction cable as Requirement |
|
· Suitable for Screen Touch use |
|
· UL listed for safety; IEC standard; TUV |
Parameter
|
Rated Voltage: |
60V |
|
Rated Current: |
500mA-5A |
|
Connector: |
Connector |
|
Power Supply: |
Electric |
Introduction

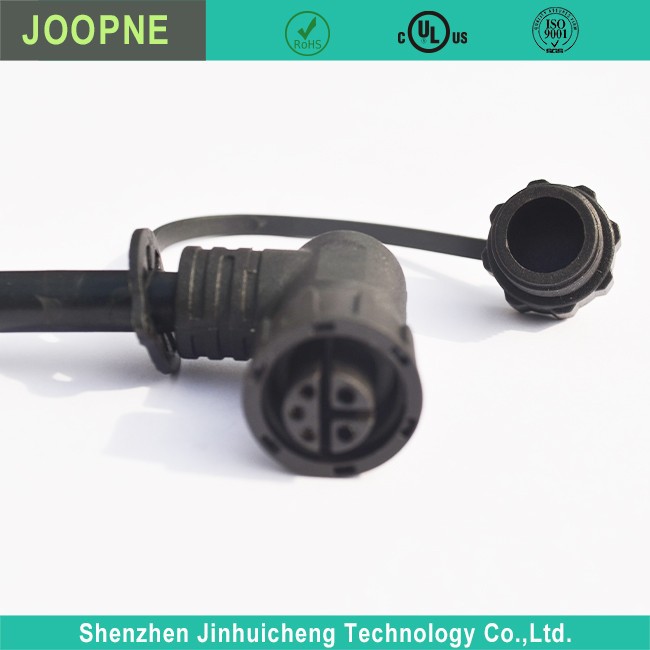

M13 cables are designed to withstand moisture and harsh environments. Some key points:
• They have the same connectors and pinout as standard M13 cables, connecting to devices with M13 5-pin ports.
• However, waterproof M13 cables have additional features that make them resistant to moisture:
– The cable jacket is made of a waterproof material like thermoplastic rubber (TPR) or thermoplastic elastomer (TPE). This provides a barrier to water ingress.
– The connectors have an IP rating, indicating their resistance to dust and water. Common IP ratings for waterproof M13 connectors are IP54, IP65 or IP67.
– The connector seals use O-rings that form a tight seal when mated, preventing water from getting inside.
• These features make waterproof M13 cables suitable for use in humid, wet or outdoor environments.
• They can still carry the same power and data as standard M13 cables. The thicker waterproof jacket just provides additional protection.
• Waterproof M13 5P cables are often more expensive than standard cables due to the additional materials and construction needed for moisture resistance.
• They are commonly used in industrial applications involving moisture, like factory floors, agricultural equipment, outdoor machinery, and more.
• Even fully submersible M13 cables are available for applications that require total isolation from water, like underwater robots and sensors.
waterproof M13 connection cables have the same function and pinout as standard M13 cables but feature additional moisture-resistant components and materials. This makes them suitable for use in wet, humid, and harsh industrial environments.
Frequently Asked Questions
What do the 5 pins do?
+
–

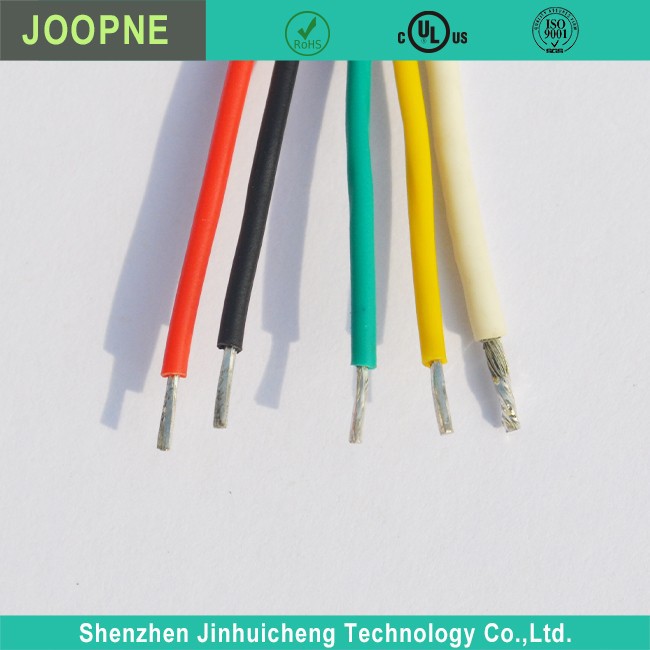

The 5 pins are typically used for: Power (usually +12V or +24V DC) Ground Transmit data Receive data Shield
How much current can they carry?
+
–
It depends on the cable type and wire gauge. Lower current cables use thinner wire and can carry up to 1-2 amps. Higher current cables use thicker wire and can carry up to 3-5 amps.
What are they used for?
+
–
M13 cables are used to connect industrial devices that have M13 connectors. This includes sensors, cameras, controls, equipment interfaces and more.
Are they weatherproof?
+
–
Standard M13 cables are not weatherproof, but waterproof variants are available. They feature a waterproof jacket, high IP rated connectors and O-ring seals to resist moisture.
What is the voltage rating?
+
–
M13 cables are typically rated for low voltages, usually under 50V DC. The power pins (usually pin 1) typically provide +12V or +24V DC for connected devices.
