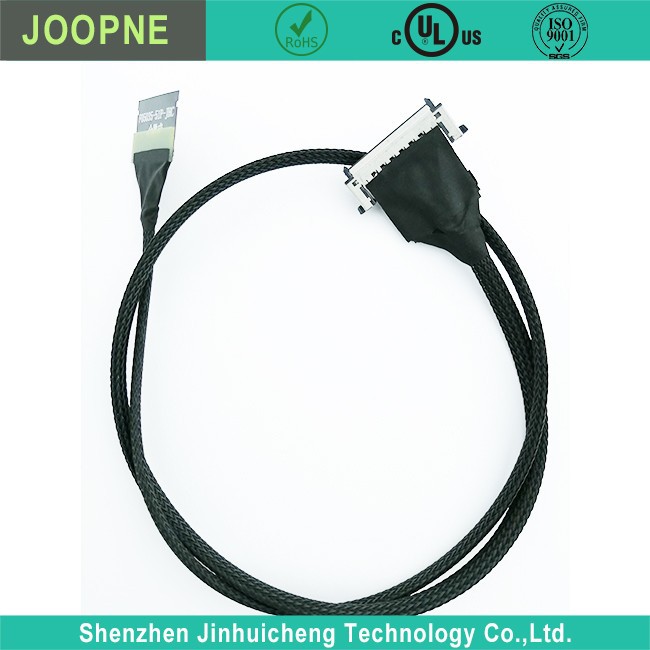

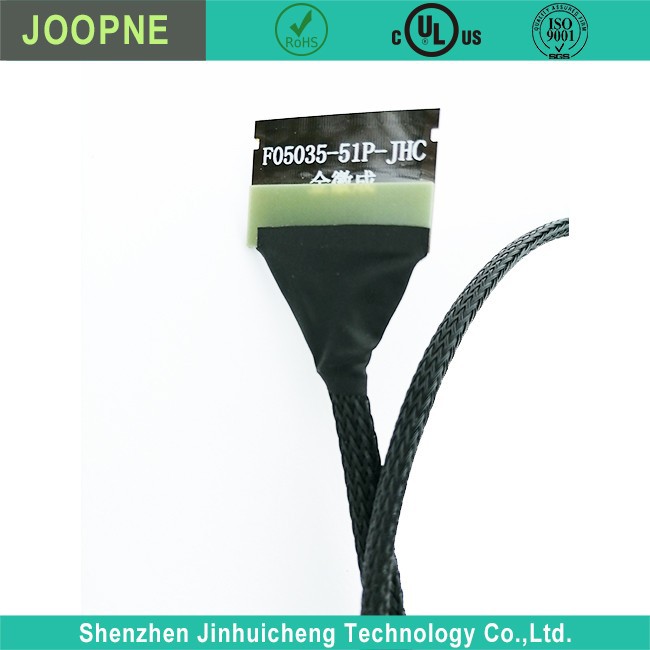

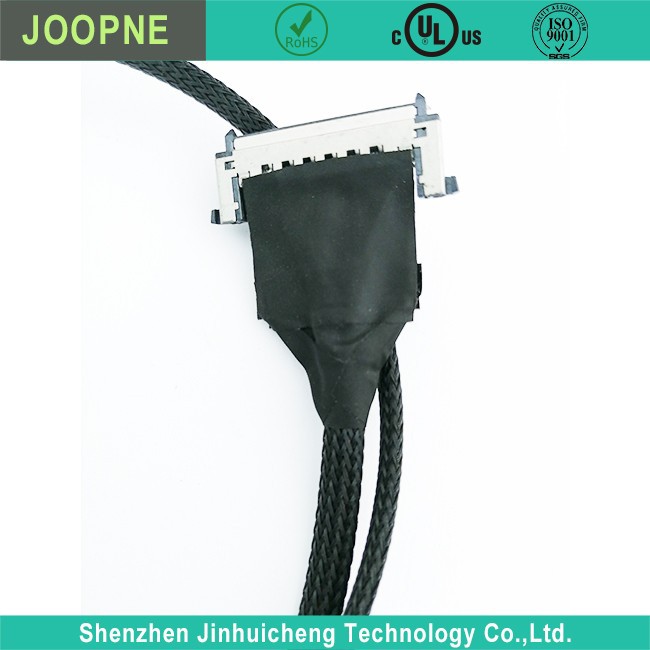

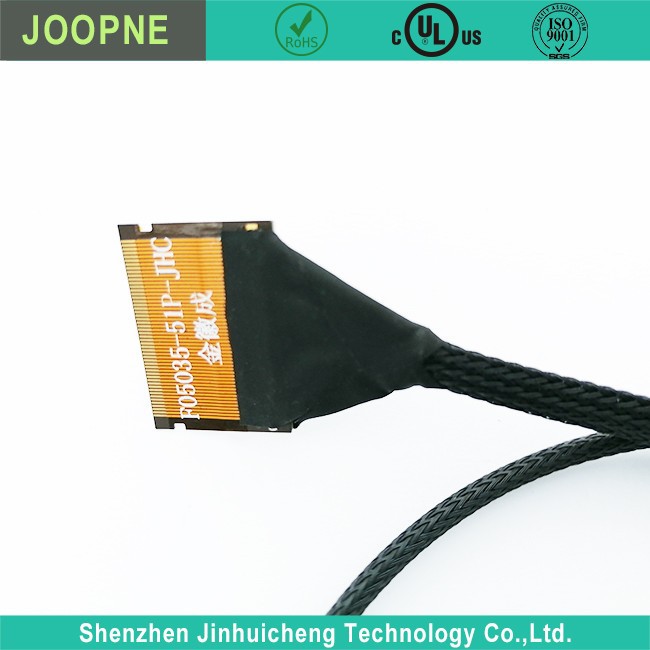

LVDS FPC Screen Panel Test Cable
LVDS FPC Screen Panel Test Cable Description LVDS FPC Screen Panel Test Cable Parameter LVDS FPC Screen Panel Test Cable Introduction Here is some information about LVDS FPC screen panel test cables: LVDS stands for Low Voltage Differential Signaling. It is a digital signaling standard used to…
Product Introduction
LVDS FPC Screen Panel Test Cable Description
|
· Braided |
|
· Different Fuction cable as Requirement |
|
· Suitable for Screen Test use |
|
· UL listed for safety; IEC standard; TUV |
LVDS FPC Screen Panel Test Cable Parameter
|
Rated Voltage: |
3.3V-12V |
|
Rated Current: |
160mA-240mA |
|
Connector: |
LVDS,FPC |
|
Power Supply: |
Eletric |
LVDS FPC Screen Panel Test Cable Introduction
Here is some information about LVDS FPC screen panel test cables:
LVDS stands for Low Voltage Differential Signaling. It is a digital signaling standard used to connect LCD screens and panels to the main circuit board.
An LVDS FPC screen panel test cable is used to test LCD screens and panels during the manufacturing and repair process. It allows you to power on the screen and display test patterns to check for any issues.
The main features of an LVDS FPC test cable are:
• Provides LVDS signal – It has the necessary LVDS pins to connect to the screen’s LVDS interface and provide the LVDS data signal.
• Provides power – It supplies the necessary voltages (typically 3.3V, 5V and 12V) to power on the screen.
• Supports test patterns – It can generate basic test patterns like white screen, black screen, color bars, etc. This helps identify dead pixels or other display issues.
• Easy to use – The test cables are designed to simply plug into the screen’s FPC connector for quick and easy testing. No soldering or special tools required.
So in summary, an LVDS FPC screen panel test cable allows you to test the basic functions of an LCD screen by providing the necessary LVDS data signal and power, along with the ability to generate simple test patterns. This is useful during the manufacturing process and for troubleshooting display issues.
Frequently Asked Questions
LVDS FPC Screen Panel Test Cable Cable
What voltage and current does it provide?
+
–
Typically an LVDS FPC test cable will provide 3 main voltages: 3.3V, 5V and 12V. The current depends on the screen’s power requirements, but usually ranges from 1-3A for each voltage. The test cable needs to provide enough current to power on the screen and run the test patterns.
How many LVDS channels does it support?
+
–
This depends on the specific test cable. Some basic ones may only support 1 LVDS channel, which is sufficient for smaller screens. Others can support up to 8 or more LVDS channels for larger, high resolution screens. Make sure the test cable has enough LVDS channels to match your screen.
What test patterns can it generate?
+
–
Most LVDS FPC test cables can generate basic test patterns like:
White screen
Black screen
Color bars (vertical and horizontal)
Red, green, blue single color screens
Inversion test pattern (alternating pixels)
Some more advanced ones may support custom patterns as well.
How do I connect it to the screen?
+
–
You simply need to plug the test cable’s FPC connector into the matching FPC connector on the screen. No tools or soldering is required. The test cable connectors are designed to easily mate with the screen’s FPC interface.
Can I leave it connected during normal operation?
+
–
No, LVDS FPC test cables are meant for temporary testing only. They are not designed for long term use during normal operation. You should disconnect the test cable once testing is complete.
