Product Introduction

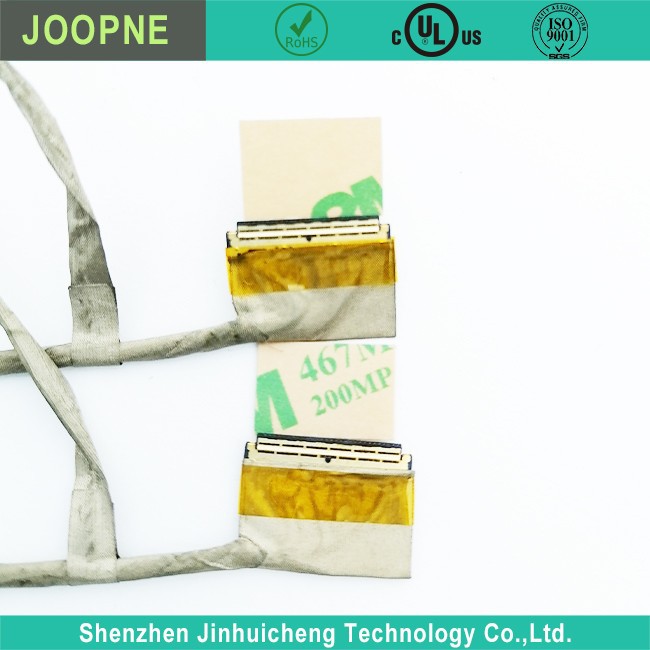

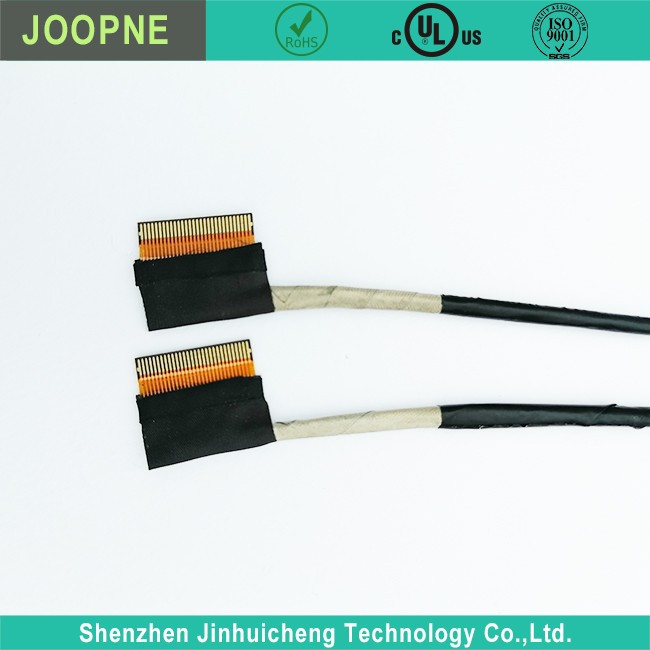

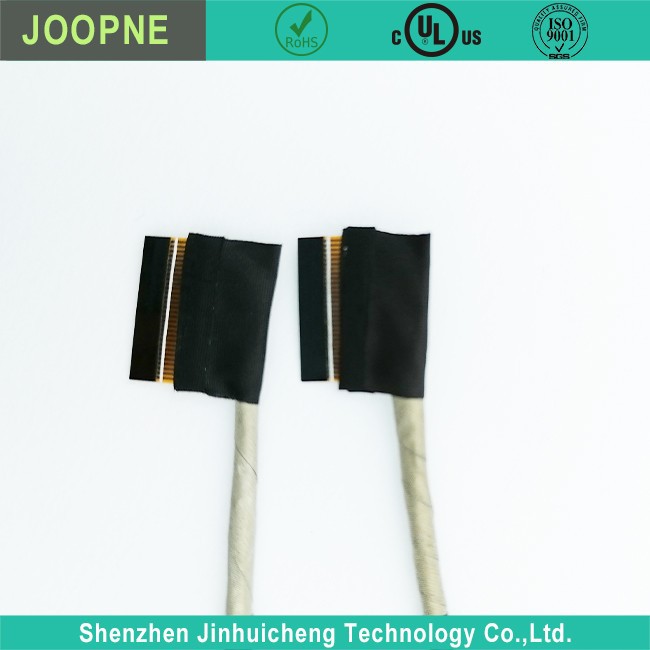

Laptop Screen Cable Description
|
· Shielded |
|
· Different Fuction cable as Requirement |
|
· Suitable for Laptop Screen use |
|
· UL listed for safety; IEC standard; TUV |
Laptop Screen Cable Parameter
|
Rated Voltage: |
1.8V-3.3V |
|
Rated Current: |
depend on laptop current |
|
Connector: |
Shield |
|
Power Supply: |
Electric |
Laptop Screen Cable Introduction
Laptop screens typically connect to the motherboard using one of several types of video cables, each with its own voltage and current specifications. Here are the common types:
1. LVDS (Low-Voltage Differential Signaling): This has been the standard for many years for connecting display panels to motherboards. The voltage for LVDS is typically 3.3 volts.
2. eDP (Embedded DisplayPort): This is a newer standard that is replacing LVDS in many laptops. It is based on the DisplayPort standard but is designed for use within a laptop between the motherboard and the display panel. eDP generally operates at 3.3 volts as well.
3. MIPI (Mobile Industry Processor Interface): This interface is commonly used for smaller displays such as those in tablets and smartphones, but it can also be found in some ultra-portable laptops. The voltage can vary but is typically around 1.8 volts.
The current for these cables will depend on the specific requirements of the laptop’s display panel, which can vary widely between models and manufacturers. It’s usually not a concern for the end-user, as the current is managed by the laptop’s hardware itself.
Frequently Asked Questions
Laptop Screen Cable
What is a laptop screen cable?
+
–
A laptop screen cable, also known as a video cable or display cable, is the connector that transmits visual data from the laptop’s motherboard to the display screen.
How many types of laptop screen cables are there?
+
–
The most common types of laptop screen cables are LVDS (Low-Voltage Differential Signaling), eDP (Embedded DisplayPort), and MIPI (Mobile Industry Processor Interface).
How do I know which type of cable my laptop uses?
+
–
The type of cable used in a laptop is typically determined by the model and the year it was manufactured. You can consult your laptop’s service manual or specifications sheet, or contact the manufacturer for this information.
Can I replace my laptop’s screen cable by myself?
+
–
Yes, it is possible to replace your laptop’s screen cable yourself if you have the necessary tools and technical knowledge. However, it’s important to follow a detailed guide and take precautions against static damage to electronic components.
What voltage and current do laptop screen cables use?
+
–
Laptop screen cables typically operate at low voltages around 3.3 volts for LVDS and eDP standards, and around 1.8 volts for MIPI. The current will depend on the specific requirements of the display.
