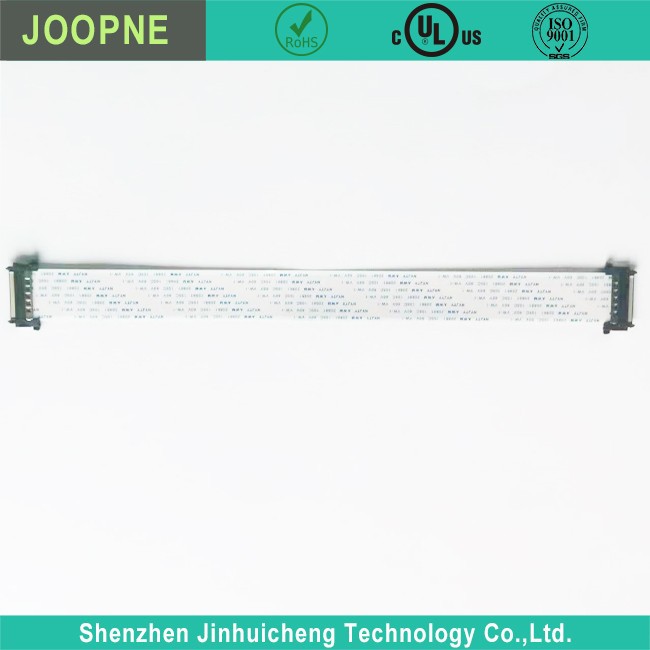

FFC Screen Cable
FFC Screen Cable Description FFC Screen Cable Parameter FFC Screen Cable Introduction FFC Screen Cable is a flexible flat cable used to connect LCD screens to control boards. Some key details: It is designed for 4K resolution screens, up…
Product Introduction
FFC Screen Cable Description
|
· Connector |
|
· Different Fuction cable as Requirement |
|
· Suitable for Computer and Machine use |
|
· UL listed for safety; IEC standard; TUV |
FFC Screen Cable Parameter
|
Rated Voltage: |
5V-12V |
|
Rated Current: |
0.5A-3A |
|
Connector: |
Connector |
|
Power Supply: |
Electric |
FFC Screen Cable Introduction
Material and Construction
FFC Screen Cables are constructed using high-quality, flexible materials to ensure reliability, durability, and optimal performance in compact spaces. The core conductors are typically made of copper or copper alloy, known for excellent electrical conductivity. These conductors are arranged in a flat, parallel configuration and are encased in a flexible insulating material, usually polyester or polyimide.
The cable’s outer jacket is designed to be both flexible and durable, often made of a flame-retardant polymer that can withstand repeated bending and folding without compromising signal integrity. The connectors at each end of the cable are precision-engineered to ensure a secure, low-profile connection with the LCD screen and control board.
Applications
FFC Screen Cables are primarily designed for high-resolution displays, but they can also be used in various other applications:
4K and 8K LCD Screens
Laptop and Tablet Displays
Digital Signage Systems
Medical Imaging Equipment
Automotive Infotainment Systems
Function and Performance
The primary function of an FFC Screen Cable is to transmit high-bandwidth video data, control signals, and power between the LCD screen and the control board. Key performance aspects include:
High Data Throughput: Supports 4K resolution (3840 x 2160 pixels) and beyond
Low Signal Interference: Flat design minimizes crosstalk between signal lines
Compact Form Factor: Allows for efficient use of space in slim devices
Flexibility: Can be bent and folded to fit within tight spaces
Power Delivery: Provides necessary power supply lines to the LCD screen
Manufacturing Expertise
Our advanced manufacturing process ensures the highest quality and performance in every FFC Screen Cable we produce. Key aspects of our manufacturing expertise include:
Precision etching and lamination techniques for consistent conductor spacing
Advanced materials selection for optimal flexibility and durability
Automated assembly processes for accurate connector attachment
Custom tooling for various pin configurations and pitches
Rigorous quality control measures, including electrical testing and mechanical stress testing
Compliance with international standards for electronic components
Competitive Advantages
Our FFC Screen Cables offer several advantages over traditional ribbon cables and other connection methods:
Space Efficiency: Ultra-thin design allows for slimmer device profiles
Signal Integrity: Flat design and shielding options reduce electromagnetic interference
Customization: Available in various lengths, widths, and pin configurations
Durability: Designed to withstand repeated bending and folding
Cost-Effective: Simplified manufacturing process leads to competitive pricing
Benefits for Buyers
Choosing our FFC Screen Cables provides numerous benefits for device manufacturers and system integrators:
Reliability: Consistent signal transmission for high-quality display output
Compatibility: Designed to work with a wide range of LCD screens and control boards
Easy Installation: Flexible design simplifies assembly and reduces installation time
Space Savings: Compact form factor allows for more efficient device designs
Scalability: Available in various configurations to support different resolution requirements
Frequently Asked Questions
FFC Screen Cable
What is the maximum resolution it supports?
+
–
The FIR-51HL is designed to support 4K resolutions up to 3840 x 2160 pixels. Higher resolutions may be possible depending on the specific LCD panel and control board used.
What is the bandwidth/data transfer rate?
+
–
As an FFC cable with 51 signal lanes, it should be capable of transferring 4K video signals at standard 60Hz refresh rates.
What are the voltage and current specs?
+
–
Voltage is typically 5V or 12V depending on the application. Current capacity is not specified but would depend on wire gauge – most similar FFC cables support 1-2A.
What is the bend radius limit?
+
–
As a flexible FFC cable, it can tolerate bending during use but avoiding tight bends is best. The minimum bend radius is typically 5-10x the cable thickness to avoid damage.
Is it shielded against EMI?
+
–
FFC cables are not inherently shielded. Shielding may be provided depending on the specific application and EMI requirements.
