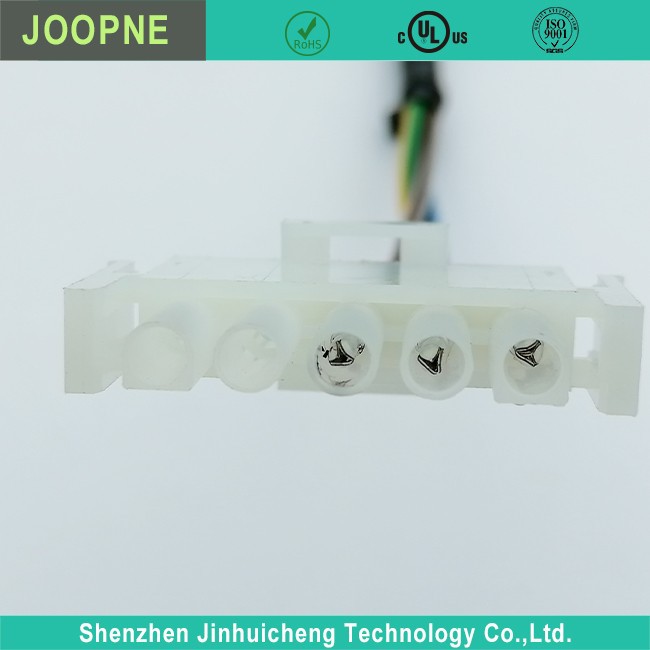

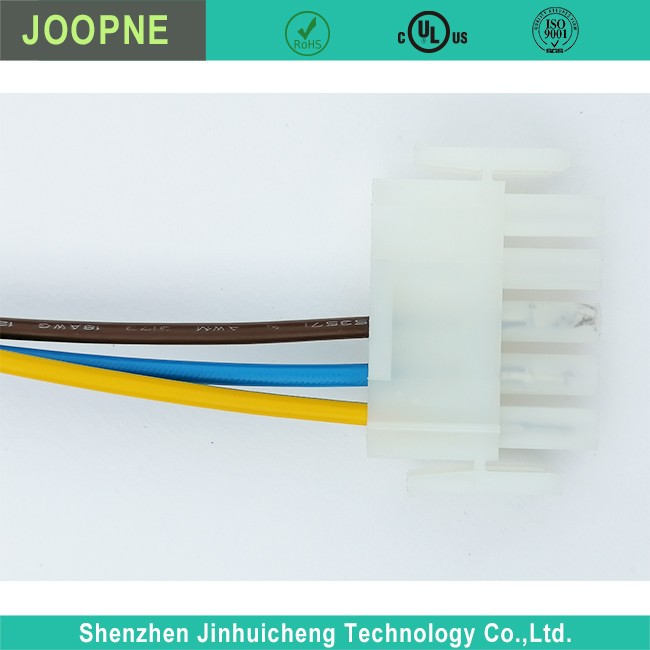

557 Power Supply Control Cable
557 Power Supply Control Cable Introduction Here is a basic introduction to power supply control cables: A power supply control cable is used to transmit control signals from an external device to a power supply…
Product Introduction
Description
|
· Connector |
|
· Different Fuction cable as Requirement |
|
· Suitable for Hair Dryer use |
|
· UL listed for safety; IEC standard; TUV |
Parameter
|
Rated Voltage: |
1V-10V |
|
Rated Current: |
6A-10A |
|
Connector: |
Connector |
|
Power Supply: |
Electric |
557 Power Supply Control Cable Introduction
Here is a basic introduction to power supply control cables:
A power supply control cable transmits control signals from an external device to a power supply unit, which then adjusts its output voltage and current based on these signals.
Power supplies are essential in many electronic systems as they provide the stable DC voltage levels required by components such as processors, memory chips, and sensors. However, the exact voltage and current requirements may vary depending on the application or operating conditions.
This is where a control cable becomes important. It enables an external device, like a microcontroller, to dynamically adjust the power supply’s output as needed. Common control signals include:
- Voltage Control: Used to raise or lower the output voltage within safe limits by sending a voltage reference signal.
- Current Limit Control: Sets the maximum current the supply can provide before shutting down to protect connected devices.
- On/Off Control: Enables or disables the power supply output entirely through a logic level signal.
The control cable transmits low voltage and low current signals that are isolated from the main power lines for safety. Common isolation methods include optical couplers and transformers.
Programmable control over critical power parameters offers flexibility and protection, allowing devices to optimize power usage or safely respond to changing loads. Control cables facilitate this communication between electronic systems and their power sources.
Frequently Asked Questions
What does the control cable do?
+
–
The control cable carries signals that control the output voltage and current limit of the power supply. This allows the power supply to be adjusted to meet the needs of the connected circuit or device.
Why is the voltage and current so low in the control cable?
+
–
The control signals are at a much lower level because they only need to carry enough power to control the power supply circuitry. The main outputs provide the high voltage and current to power the connected device.
How is the control cable isolated?
+
–
The control cable is typically isolated from the main power supply outputs using optical isolation, transformers, or other isolation methods. This ensures the low-level control signals do not interfere with the high-power output.
What types of signals does the control cable carry?
+
–
Common control signals include voltage control signals to set the output voltage, current limit signals to set the maximum output current, on/off signals to turn the power supply on and off, and status signals from the power supply.
How accurate do the control signals need to be?
+
–
The control signals typically need to be accurate to within 1% or better to properly control the output voltage and current limit of the power supply. More accurate control signals provide better regulation and stability.
