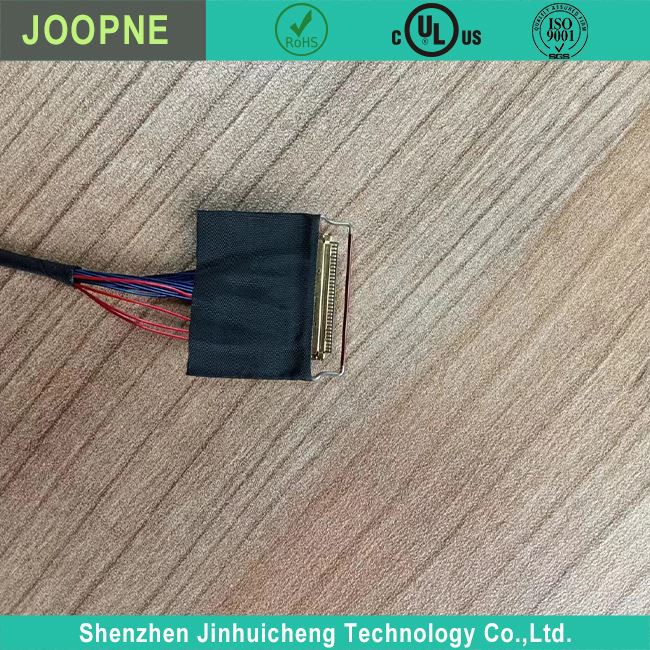

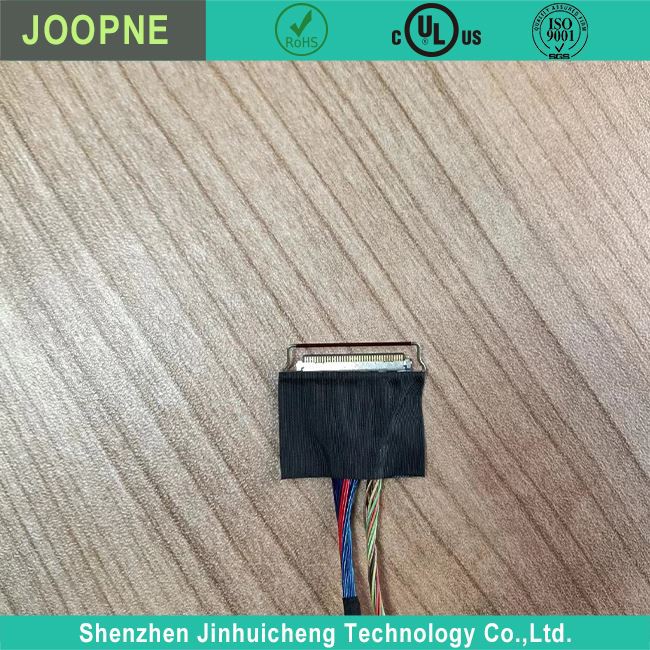

4Lane 30P-40P EDP Coaxial Screen Cable
4Lane 30P-40P eDP coaxial screen cable Description 4lane 30P-40P EDP Coaxial Screen Cable Parameter 4lane 30P-40P EDP Coaxial Screen Cable Introduction When looking for 4Lane 30P-40P eDP coaxial screen cable, there are a few options and considerations to take into account: 1. Adapters: There are…
Product Introduction
4Lane 30P-40P eDP coaxial screen cable Description
|
· Shield |
|
· Different Lane and Pins harnessed cable |
|
· Suitable for Monitor/Display use |
|
· UL listed for safety; IEC standard; durable design for long-lasting strength and performance |
4lane 30P-40P EDP Coaxial Screen Cable Parameter
|
Rated Voltage: |
5V-12V |
|
Rated Current: |
0.1A-0.3A |
|
Connector Pin: |
30Pin to 40 Pin |
|
Power Supply: |
Electric |
4lane 30P-40P EDP Coaxial Screen Cable Introduction
When looking for 4Lane 30P-40P eDP coaxial screen cable, there are a few options and considerations to take into account:
1. Adapters: There are adapters available that can convert a 30-pin eDP (2-lane) cable to a 40-pin eDP (4-lane) cable. These adapters are specifically designed for laptop display upgrades where the original screen may have a different pin configuration or lane support than the replacement screen. For example, an individual on the Linus Tech Tips forum discussed such an adapter for upgrading their Laptop from a 60Hz to a 144Hz display panel .
2. Specific Cables: You can purchase specific 40-pin signal cables designed for eDP (Embedded DisplayPort) LCD screens, such as the VSDISPLAY 40Pin Signal Cable, which is compatible with 4K panel displays.
3. Community Discussions: In the Framework Community, there has been a discussion about using a 40-pin eDP cable (4-lane) with a 30-pin eDP (2-lane) connection. This implies that with the correct cable or adapter, it is possible to connect displays with different pin counts and lane configurations.
4. Technical Support Forums: On forums like Linus Tech Tips, users have discussed the possibility of connecting a laptop screen with a 40-pin connector to a laptop that has a 30-pin connector. This again suggests that with the right adapter or cable, such modifications can be made .
If you’re looking to purchase such a cable or adapter, it’s crucial to ensure compatibility with your specific display and device. It’s also recommended to check the specifications of the cable or adapter to ensure it meets the requirements of your display’s resolution and refresh rate.
Frequently Asked Questions
4Lane 30P-40P eDP coaxial screen cable
What is a 4Lane 30P-40P eDP coaxial screen cable?
+
–
A 4Lane 30P-40P eDP coaxial screen cable is a type of display cable that is used to connect a laptop or computer motherboard to its display panel. It typically has a 30-pin connector on one end and a 40-pin connector on the other end, supporting 4 data lanes for high-resolution display data transfer.
Can I use a 4-lane eDP cable with a 2-lane eDP connector?
+
–
While a 4-lane eDP cable is designed for higher bandwidth and typically used with higher resolution displays, some users have discussed using adapters to convert a 30-pin (2-lane) cable to a 40-pin (4-lane) cable for display upgrades, such as upgrading from a 60Hz to a 144Hz display panel as mentioned in the Linus Tech Tips forum.
Can I connect a laptop screen with a 40-pin connector to a laptop with a 30-pin connector?
+
–
This is possible but requires the correct adapter or cable. Discussions on tech forums indicate that users have successfully made such connections, suggesting the feasibility of using the right adapter or modifying the cable to fit .
Are adapters from Chinese vendors reliable for converting eDP cables?
+
–
The reliability of adapters from any vendor, Chinese or otherwise, can vary. It’s essential to contact and ensure that the adapter meets the necessary specifications for your display upgrade. JHCGD(JOOPNE) is a good supplier for such cables.
What should I check before purchasing a 4Lane eDP cable?
+
–
Before purchasing, you should check:
The resolution and refresh rate of your display, to ensure the cable supports it.
The pin configuration of both your motherboard and display, to ensure compatibility.
The quality and reviews of the cable or adapter.
The return policy, in case the cable does not work as expected.
